This optical refractometer is designed especially for measuring of soy milk (soymilk, soya milk) concentration in the range from 0 to 25 %.
Scale | Scale range | Resolution |
Soy milk concentration |
0 to 25 % |
0.5 % |
Fruit juice sweetness |
0 to 32 °Bx |
0.2 °Bx |
The measurement
The soya milk measuring is very easy. Place a few drops of measured liquid onto the prism, press slightly the cover plate to eliminate possible bubbles as well as air and the light/blue boundary will show you the result value.
General technical specifications
- Reference temperature is 20 °C
- ATC - automatic temperature compensation (in temperature range from 10 to 30 °C)
- Possibility of focusing
- Length ~ 160 mm
- Quality technical design, metal body

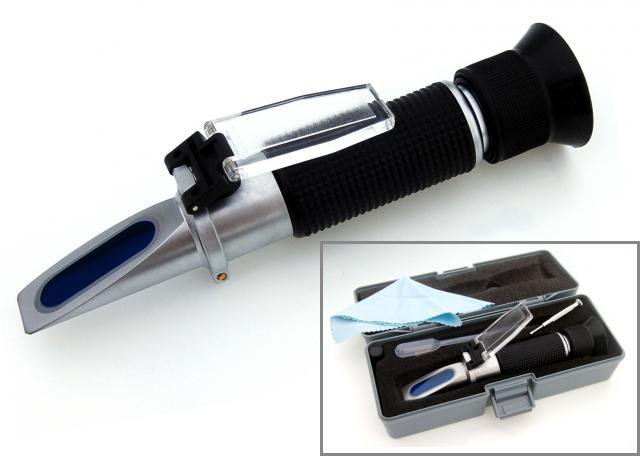

- Package contents: durable plastic case, refractometer, cleaning cloth, plastic pipette, screwdriver, operating instructions in English

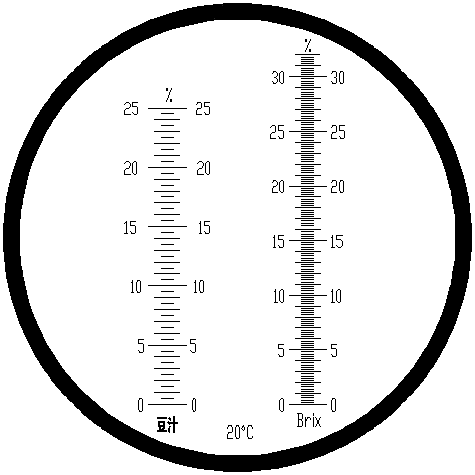

Scale of the refractometer RMK1-ATC
